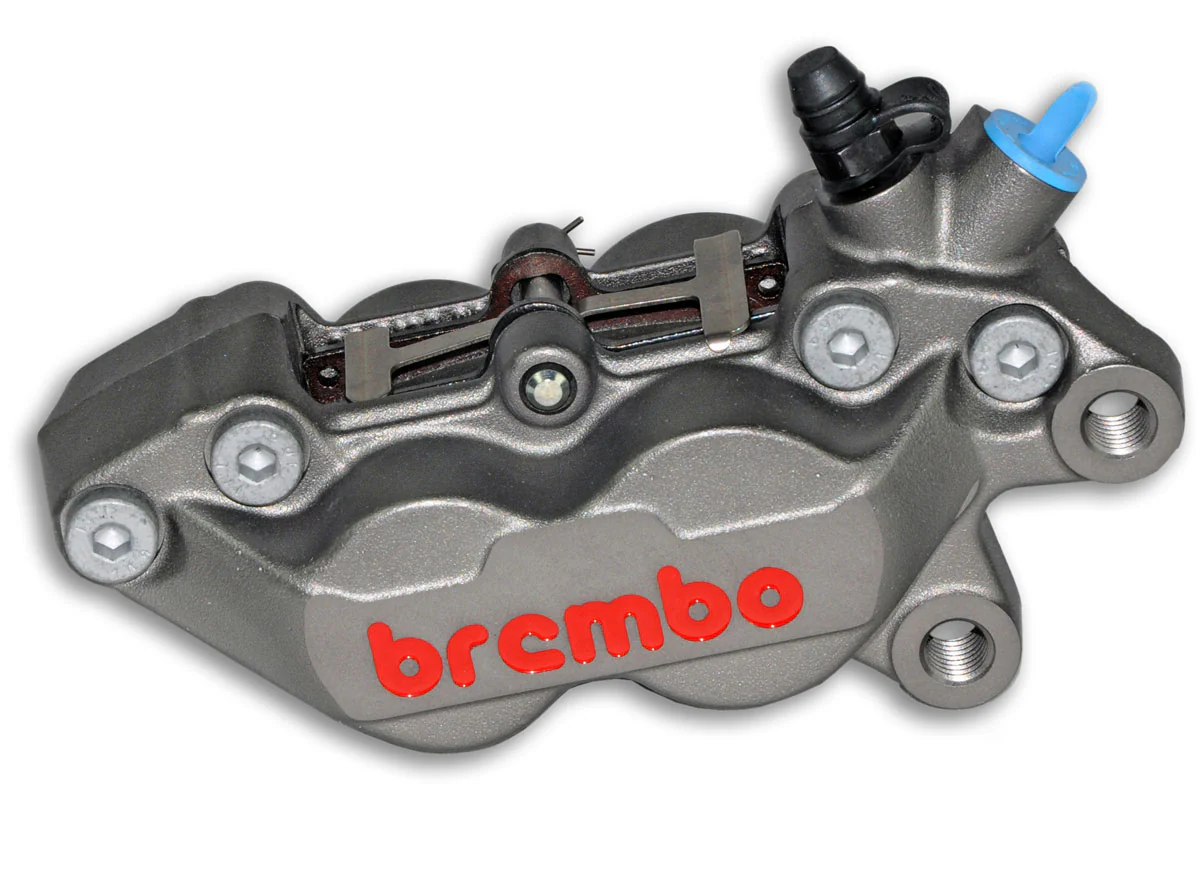

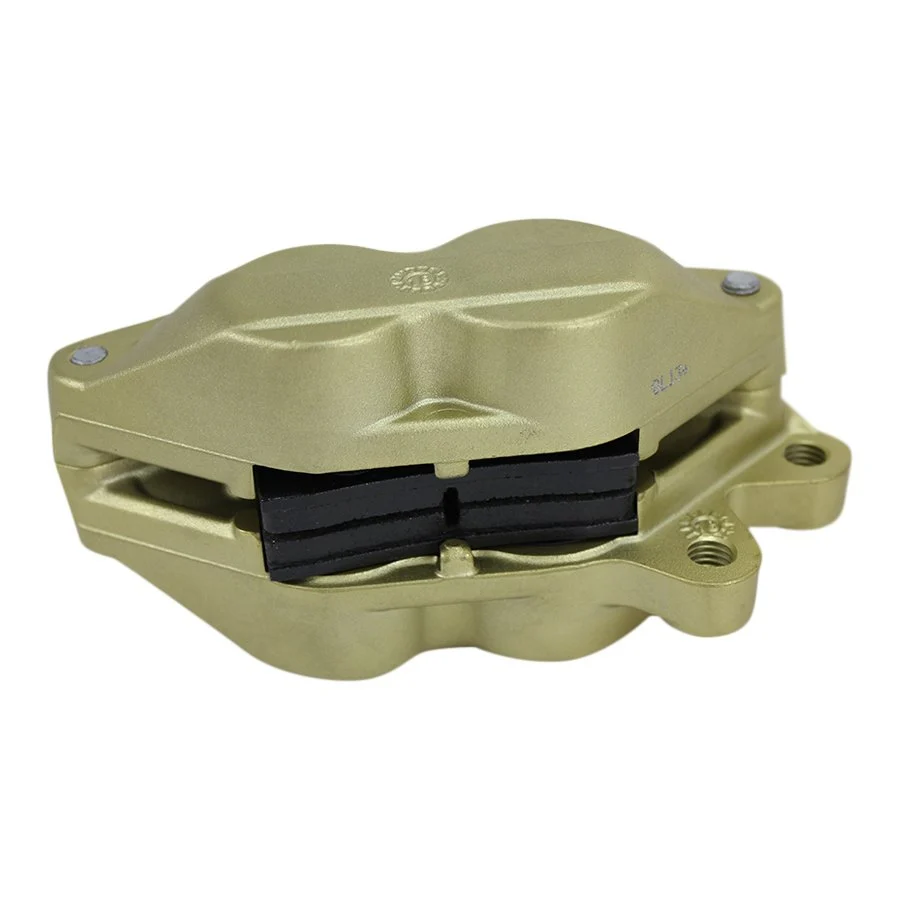

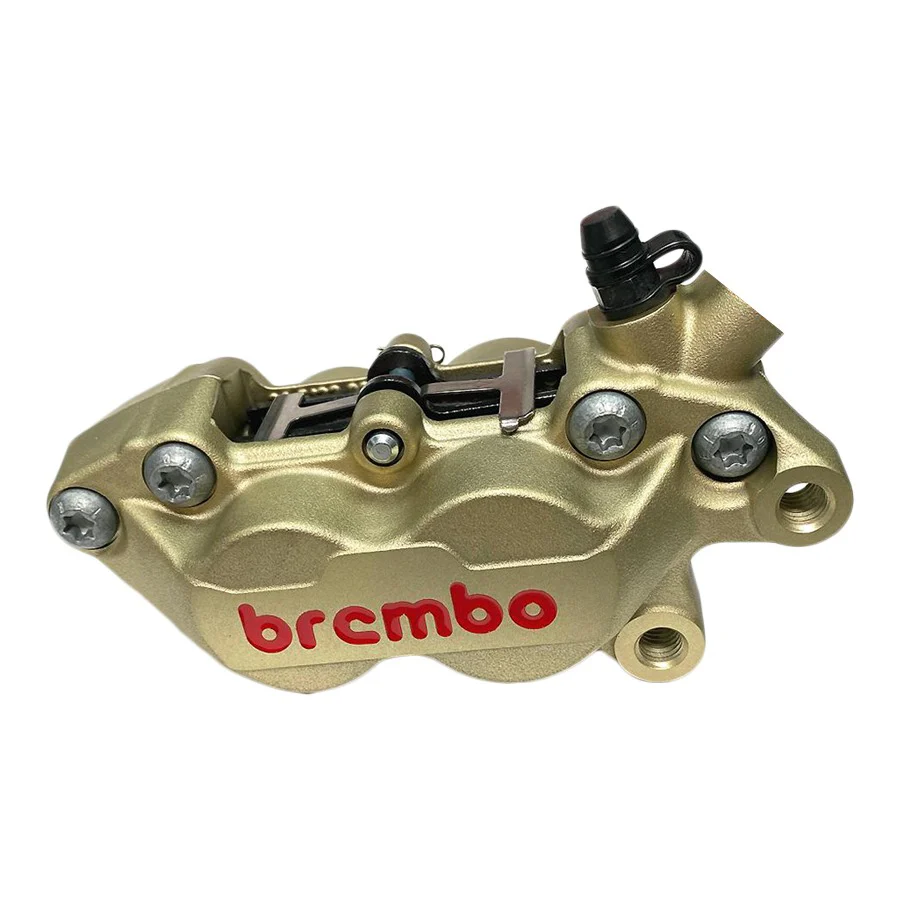

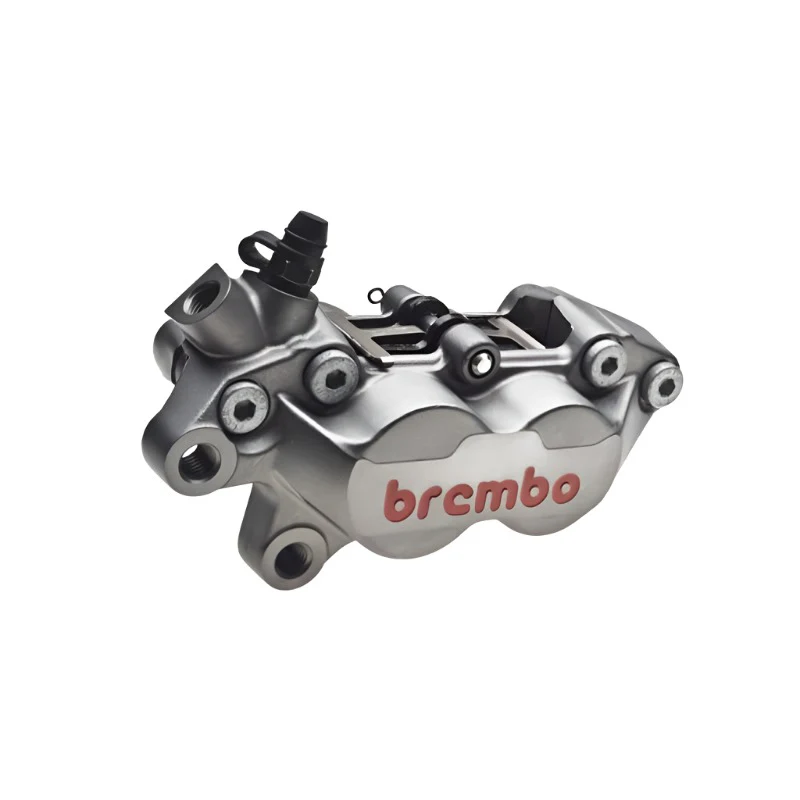

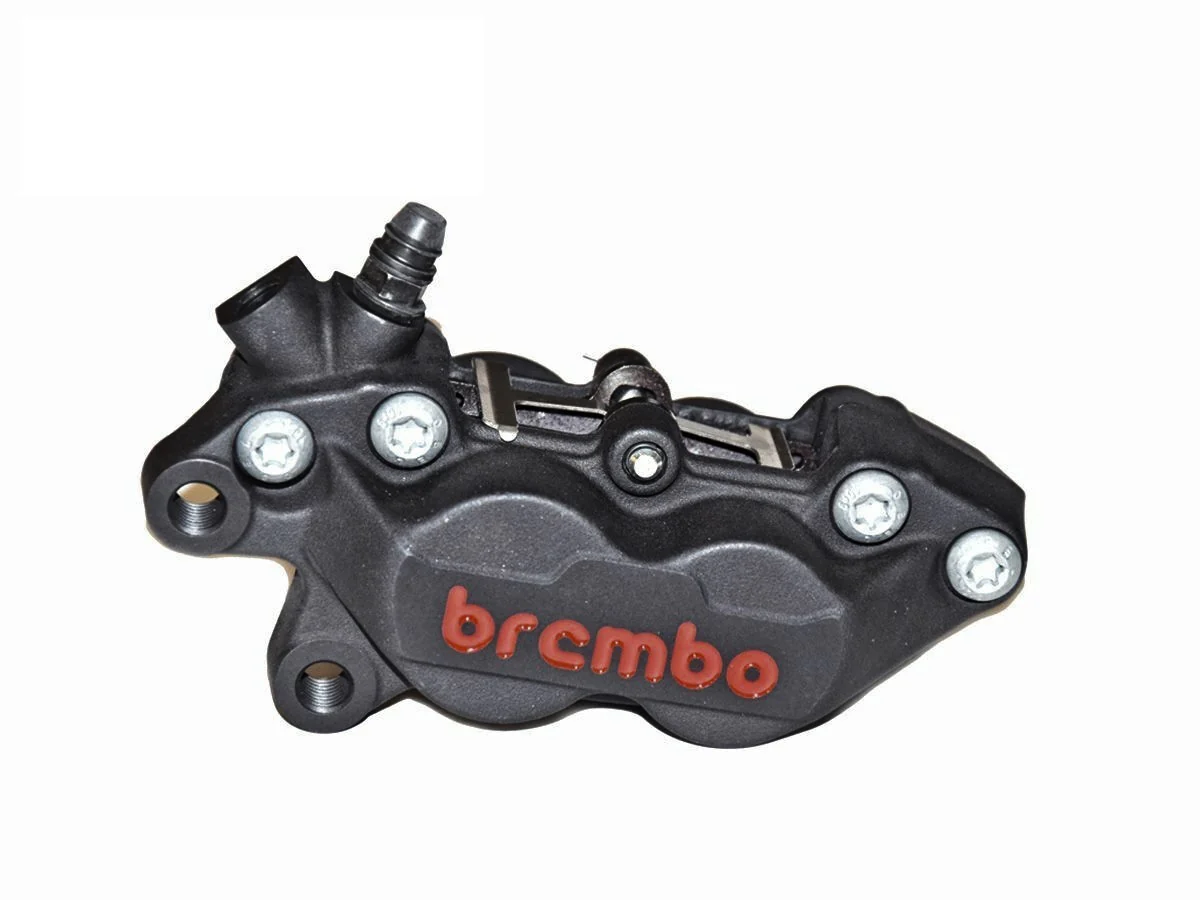

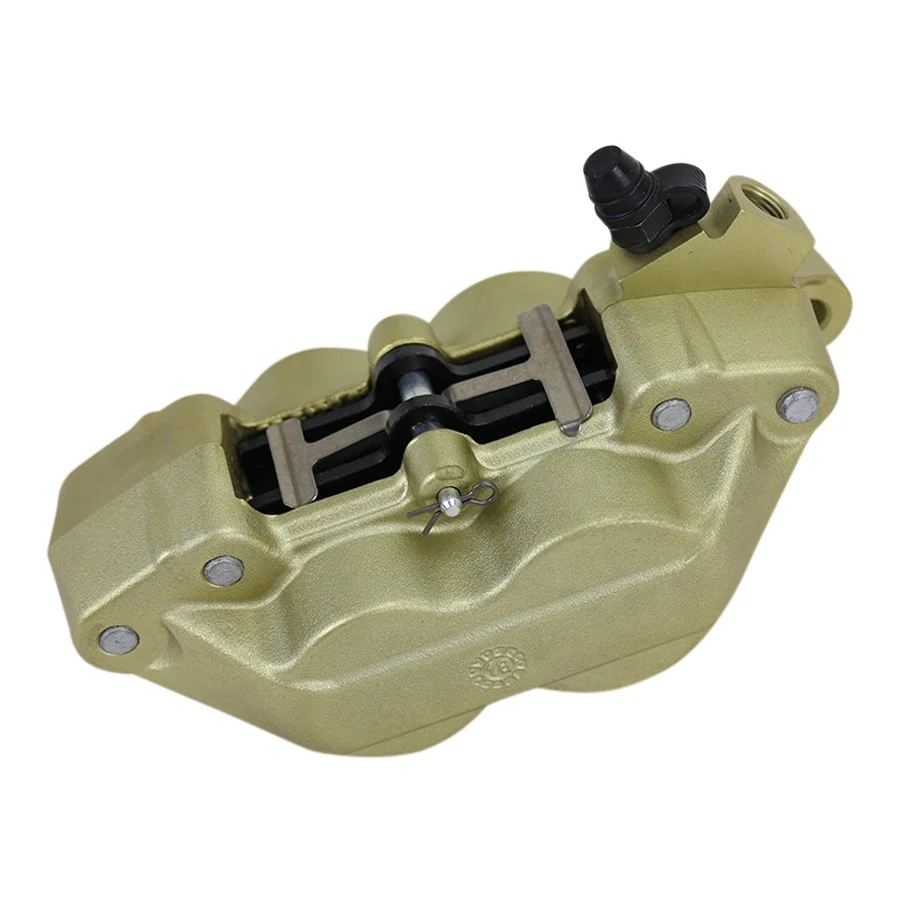

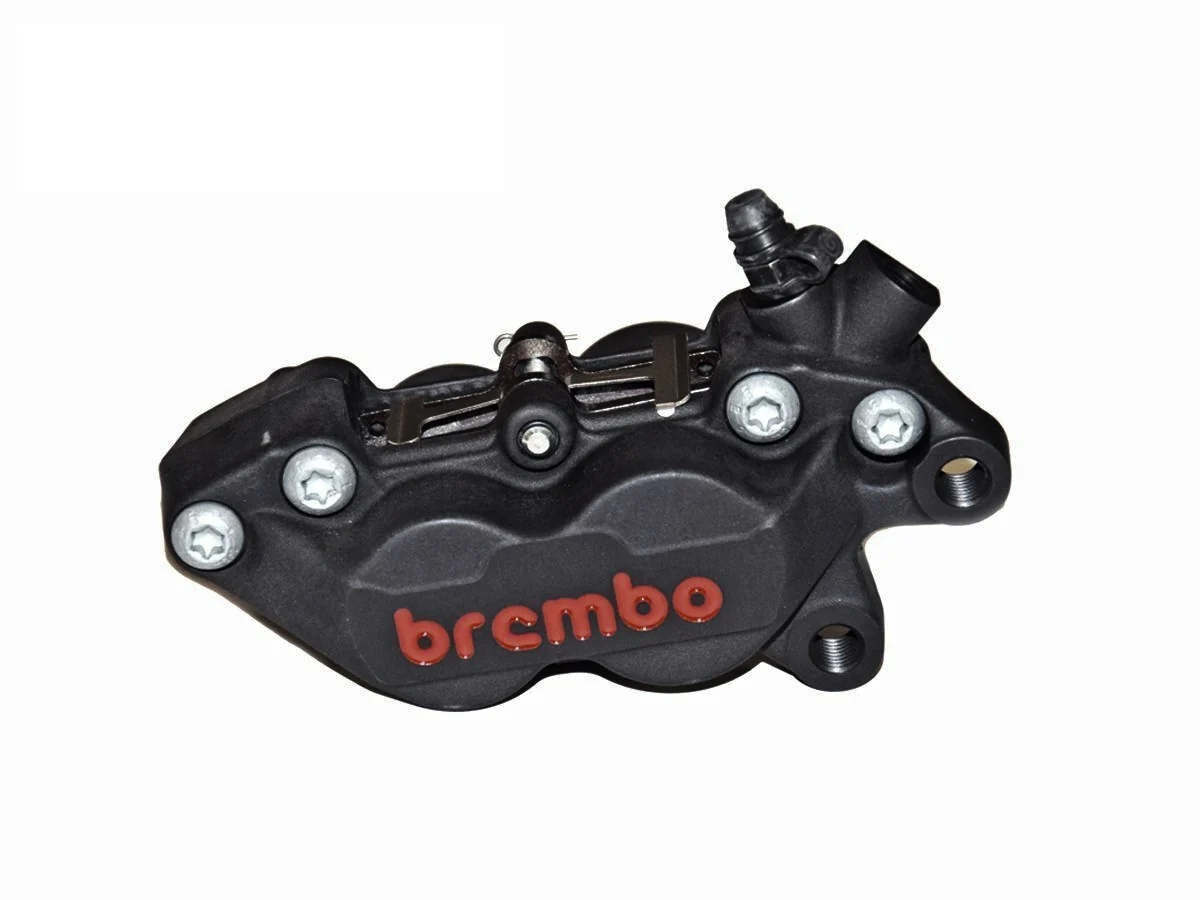

Brembo P4 Axial Brake Caliper

Brembo P4.30-34 Axial Brake Caliper

A four-piston Brembo caliper is an excellent choice for riders looking to improve brake sensitivity and feel.

• Two-piece aluminum body machined from solid billets for rigidity and precision, even at elevated temperatures
• Axial mounting across the caliper body simplifies adaptation to many forks due to similar size and construction to many OE calipers
• Common 40mm caliper pitch
• Caliper contains four pistons—two 30mm pistons and two 34mm pistons
• Designed for 320mm (12.6") rotors
• Choice of anodized finish for great looks and corrosion prevention
  • All feature red lettering
• Sintered pads, shims, bleeder nipple, and cap included
• Sold individually; dual caliper front applications will require the purchase of two calipers
• Calipers require one 10mm × 1.0 banjo bolt per caliper (available separately)

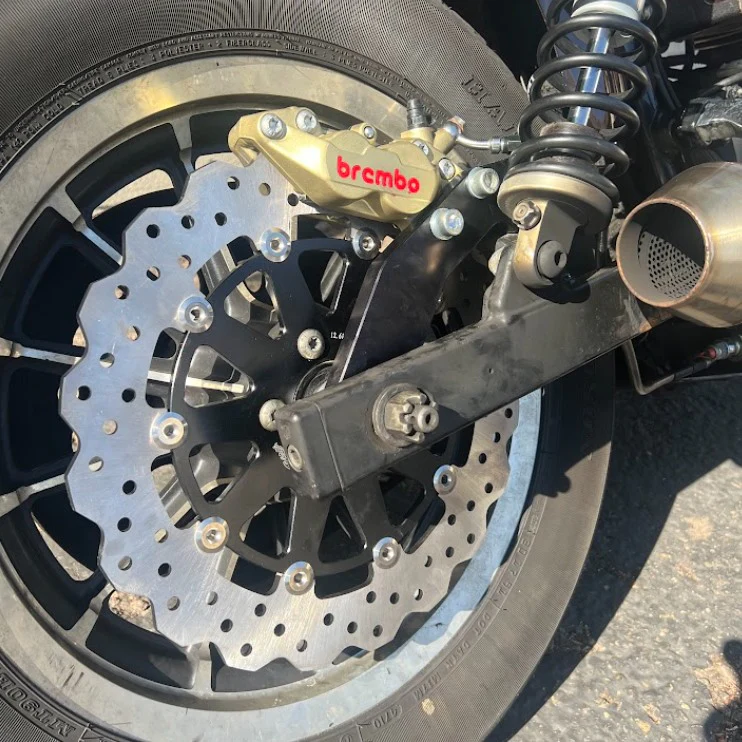

Axial-mount, two-piece calipers with dual bore sizes represent an economical way to achieve nuanced brake feel, clearly-custom looks, and a weight reduction when compared with many factory calipers. Coupled with the extensive mounting brackets offered by TC Bros., achieving race-replica stopping power on a Harley-Davidson is easy. Looking for discs for your brake swap project? These pair well with TC Bros. Profile™ floating rotors.
